R.E.A.C.T. 4G body camera

Description

1) Production introduction

Smart 4G Body Worn Camera Model C310 is based on Android system and 4G full frequency network, which integrates all functions of video and audio recording,4G video & audio monitory and management, POC feature, tracking location, wide angle

• fixed-focus and Digital zoom together to meet nearly all scenes and two-way video communication demand. C310 Body Worn Camera can match with Monitory platform to realize a visible, audible and controllable smart application management.





2)Product Main Feature

1、Real time control Video and Audio by 4G,

2、3 cameras can be extended more application functions

3、SOS button can give Control Center alarm by sending real-time video and audio information.

4、PTT by 4G/WIFI, Full 4G frequency can meet nearly all Country Operators.

5、Real-time transfer and at the same time can be recorded in Body Worn Camera.

6、Add Red-Blue warning light to make the user more safer in evening.



3)Functions

Excepting support all basic 4G body cam function, we also accept to connect with customers’ platform according to your platform APK.

1、 Support 2G/3G/4G

2、 Front Big Recording button design to make user can operate it easily even with gloves.

3、 One button uploading recorded video, audio and picture.

4、 Front camera with wide angle, around with IR light, LED white light and laser light could be defined according to actual demand

5、 Real-time transfer and at the same time can be recorded in Body Worn Camera, double back up to avoid data missing

6、 Real-time audio command management according to present situation of streaming video by 4G

7、 Location by GPS+BD+GLONASS+Galileo to realize higher position accuracy.

8、 Shortcut key design can realize expected function by one button operation

9、 Changed battery & big capacity design to guarantee long time recording word.

10、 Key event marking function

11、 SOS one button give alarm

12、 Support wifi and BT

13、 Support NFN can read chipset information by touching lightly



4)Main Specification:



Item			Specification
		GSMCDMACDMA2000WCDMAFDD-LTETDD-LTE
			GSM:850/900/1800/1900
4G wireless transfer
			WCDMA:850/900/1900/2100
frequency			EVDO:800
			TDD-LTE:B34/B38/B39/B40/B41
			FDD-LTE:B1/B2/B3/B4/B5/B7/B8/B17/B20/B28AB
T card capacity			Standard with 32G, 64G/128G is optional
Interface type			Standard earphone port, Mini USB, SIM card slot
尺寸 Size			≤103x65x18mm
Weight			≤180g
View angle			≥140 度
Waterproof level			≥IP68
Screen			TP 3.1 Inch
Recording time			One battery recording time is more than 12h
Video resolution			1920×1080，1280×720,640×480，480×320
Video format			MP4



Picture Pixel	True Pixel 2560×1950、3264×2448、 4736×3552,6528*4896
Picture format	JPEG
Touch screen	Support
Time synchronization	Support
LED white light	Support
IR function	3 to 4 m to see people face, in 10 m to see people outline
WIFI	Support
NFC	Support
GPS	Support
BT	Support
PTT	Support
APP application	Optional (according to customer actual demand)



5) Accessories

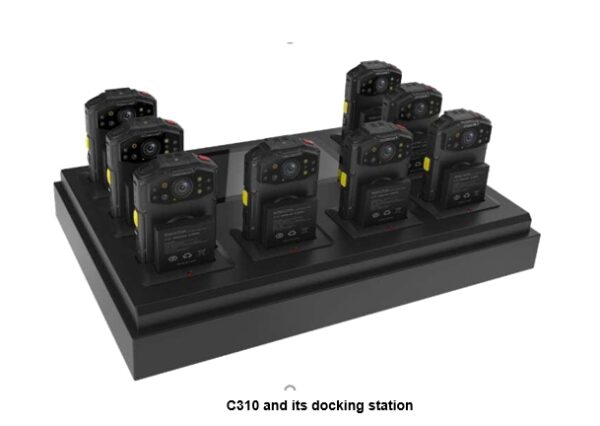

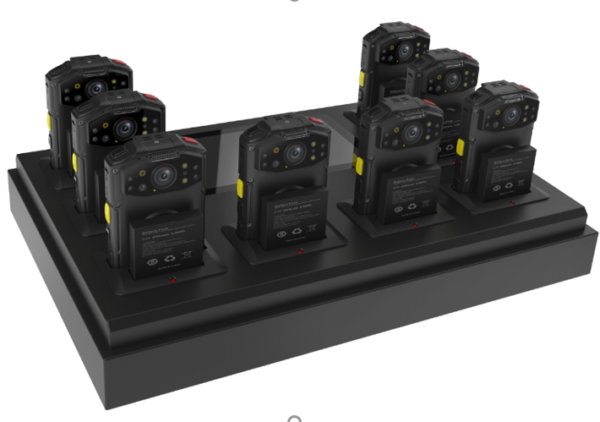

Standard accessories：USB cable，360 degree rotary Metal clip, AC adaptor，360 degree shoulder clip，Single dock charging base

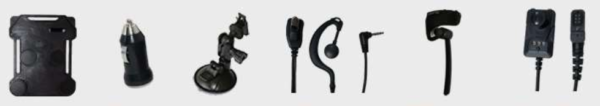

Optional accessories: Magnetic mounting，Vehicle mount，Car charger, PTT earphone, BT PTT earphone, External camera, Battery

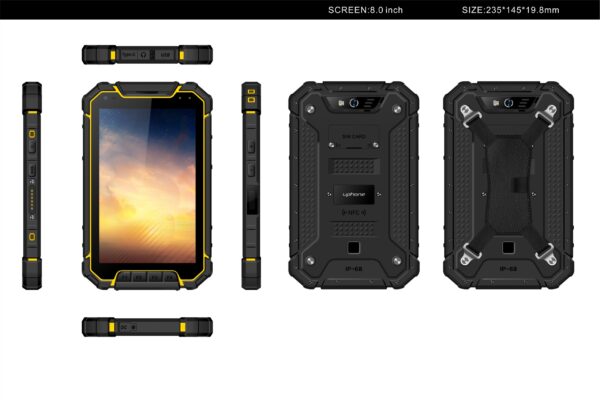

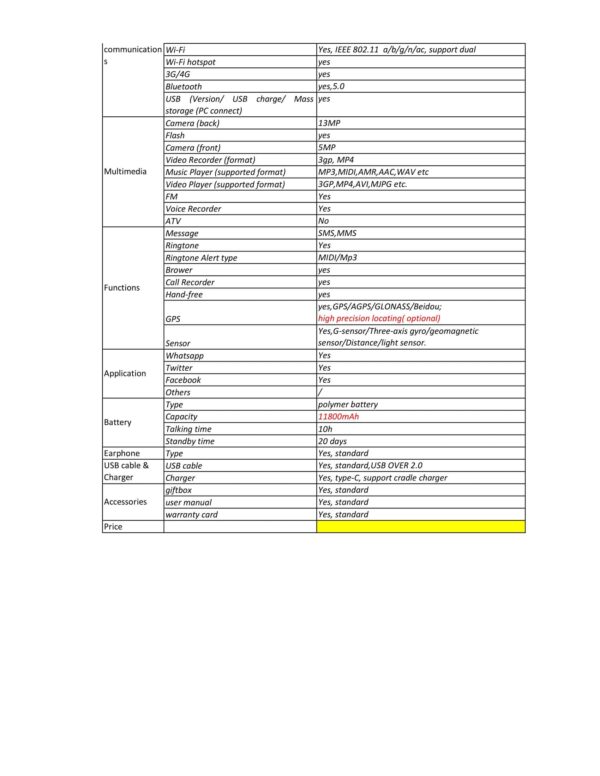

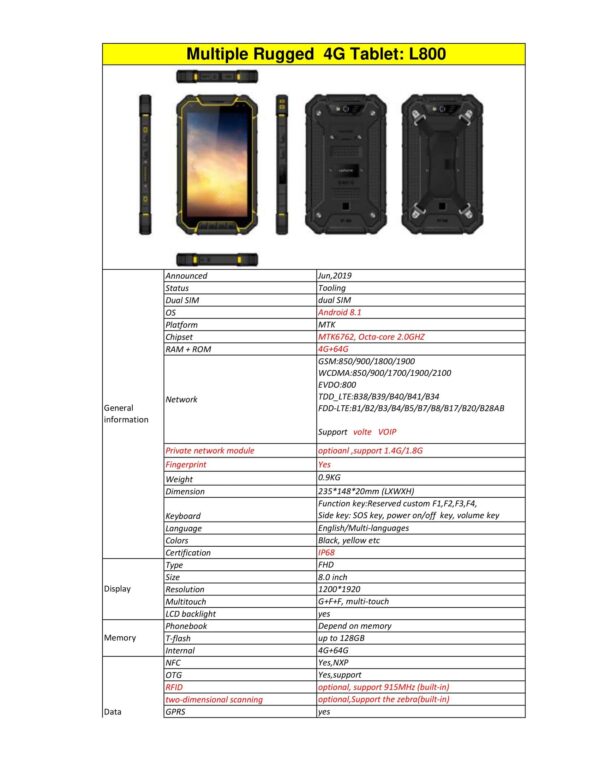

6)Platform: Can choose our Rugged tablet L800 to be Mobile Control centre.
